SPSESIFIKASI :

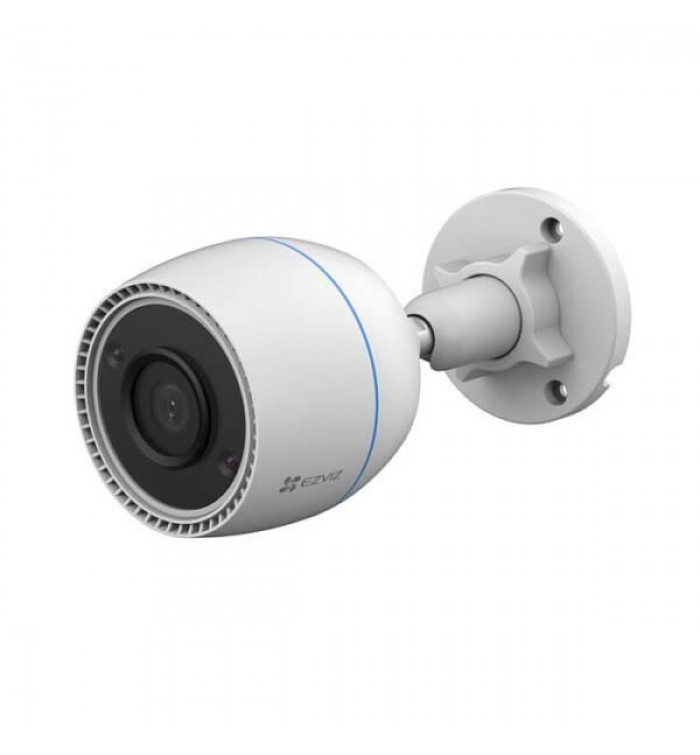

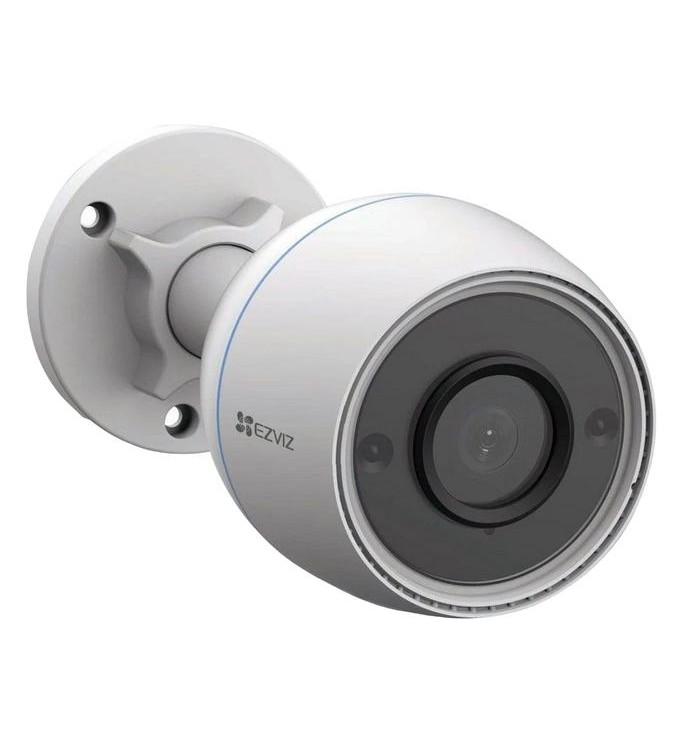

Model CS-H3c-R100-1K2WFL
Camera
Image Sensor 1/2.7”Progressive Scan CMOS
Minimum Illumination 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
IR Night Vision Distance Up to 98 ft / 30 m
Shutter Speed Self-adaptive shutter
Lens 4mm @ F2.0, view angle: 82° (Horizontal), 98° (Diagonal)
Lens Mount M12
DNR 3D DNR
WDR Digital WDR
Day / Night Switch IR-Cut filter with auto-switching
Video & Audio
Max. Resolution 1080p, 1920 × 1080
Frame Rate Max: 30fps; Self-Adaptive during network transmission
Video Compression H.265 / H.264
Video Bit Rate Full HD; HD; Standard. Adaptive bit rate.
Audio Bit Rate Self-Adaptive
Max. Bitrate 1 Mbps
Network
Wi-Fi Standard IEEE802.11b, 802.11g, 802.11n
Frequency Range 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth Supports 20 MHz
Security 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
Transmission Rate 11b: 11Mbps, 11g: 54Mbps, 11n: 144Mbps
Wi-Fi Pairing AP Pairing
Protocol EZVIZ Cloud Proprietary Protocol
Interface Protocol EZVIZ Cloud Proprietary Protocol
Wired Network RJ45 × 1 (10M / 100M Adaptive Ethernet Port)
General
Dimensions 72mm × 72mm × 157mm (2.83 × 2.83 × 5.98 inch)
Package Dimensions 227 × 100 × 92 mm (8.94 × 3.94 × 3.62 inch)
Weight Net weight: 250 g (8.82 oz), With Package: 447 g (15.77 oz)
IP Grade IP67
Operating Conditions -30 °C to 50°C ( -22 °F to 122 °F ), humidity 95% or less (non-condensing)
Function
Detection AI-Powered Human Shape Detection, Motion Detection
Customized Alert Area Supports
Integration Works with Alexa, Google Assistant, IFTTT
General Function Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark
Storage
Local Storage Supports microSD card (Up to 512 GB)
Cloud Storage Supports EZVIZ CloudPlay storage (Subscription required)
Power
Power Supply DC 12V / 1A
Power Consumption Max. 6W
